Steel Doors



Clopay Steel Doors



Premium-duty 20 gauge and heavy-duty 24 gauge steel non-insulated garage doors offer long-lasting dependability and enduring quality that will meet the rigors of daily use.   25 gauge non-insulated steel doors are an alternative option for applications requiring economy and reliability in a lighter-gauge commercial garage door.

Model Thickness Steel Gauge Panel Design 520 2" 20 gauge ribbed steel 524 2" 24 gauge ribbed steel 664 2 1/8" 24 gauge raised panel steel 525 2" 25 gauge ribbed steel

  This 24-gauge steel door is a three-layer “sandwich” model with polyurethane injected between galvanized steel skins for an R-value of 18.4. Its continuous thermal break helps prevent leaks. Heights from 6’3” to 24’ and widths from 9’2” to 32’2” are available.



---


R&S Manufacturing

---

 Standard Duty Service Door

  The R&S Standard Duty door is an economical yet reliable service door affording many years of maintenance free performance. Many options are offered from perforated slat to the inclusion of a pass door or grille section.

  All R&S doors are designed to withstand up to 80 mph winds and can be upgraded for more severe weather conditions. Curtains can be ordered in standard grey or in tan with contrasting black guides and footpiece.

Standard Duty Service Door Features

• steel channel guides
• 24 gauge interlocking prime painted galvanized steel slat curtain up to 16′ wide-22 ga. over 16 ‘ wide (heavier gauges available)
• 24 gauge hood standard – upgrades of gauge available
• 6″ minimum diameter structural steel pipe barrel
• Oil tempered torsion springs on continuous cold-rolled steel shaft
• Steel plate brackets attach to wall angles
• Interior or exterior, face of wall or between jamb mount
• Prime-painted galvanized steel hood
• Chain operation with cast iron gears
• Interlocking prime-painted galvanized steel slats
• Extruded aluminum foot piece with astragal

  ---

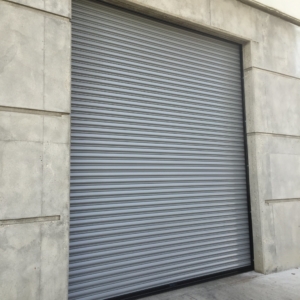

  Heavy Duty Steel Rolling Service Doors

  The R&S Heavy Service Duty door provides high security and durability offering years of maintenance free performance. Many options are offered with this model from perforated slat to the inclusion of a passdoor or grille section.

  All R&S doors are designed to withstand up to 80 mph winds and can be upgraded for more severe weather conditions. Curtains can be ordered in standard grey or in tan with contrasting black guides and footpiece.

Heavy Duty Steel Roll-up Service Door Features

Standard Features:

•  6″ minimum diameter structural steel pipe barrel
• Oil tempered torsion springs on continuous cold-rolled steel shaft
• Steel plate brackets attach to wall angles
• Interior or exterior, face of wall or between jamb mount
• Prime-painted 24 ga. galvanized steel hood
• Chain operation with cast iron gears
• 22 gauge Interlocking prime-painted galvanized steel slats-(heavier gauges available)
• structural steel angle guides and continuous wall angle mounting
• Extruded aluminum foot piece with astragal

**Note: All items featured may be optional on above door lines and can be changed without notice.
